plot_isoredshifts

luminet.black_hole.BlackHole.plot_isoredshifts(redshifts=None, order=0, ax=None, **kwargs) → matplotlib.axes.Axes

Plot isoredshifts for a list of redshift values

Parameters:

  • redshifts (List[float]) – list of redshift values

  • kwargs (optional) – additional keyword arguments for the luminet.isoredshift.Isoredshift.plot() method.

  • order (int) – The order of the image to plot siofluxlines for. Default is \(0\).

  • ax (Axes, optional) – Axes object to plot on. Useful for when you want to plot multiple things one a single canvas.

Example:

from luminet.black_hole import BlackHole

bh = BlackHole()
redshifts = [-.2, -.1, 0., .1, .2, .3, .4]
ax = bh.plot_isoredshifts(redshifts, c='white')
ax = bh.disk_apparent_inner_edge.plot(ax=ax, c='white')

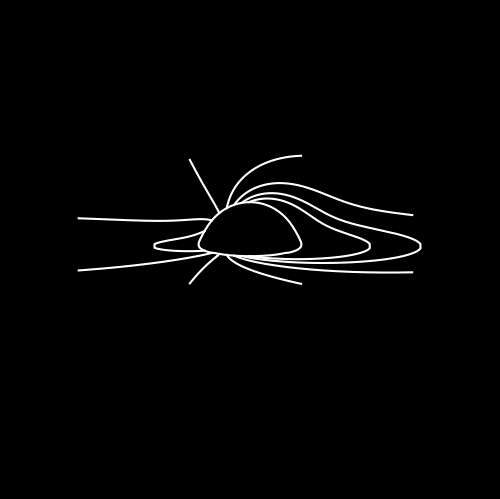

../../../_images/isoredshifts.png
Returns:

Axes – The plotted isoredshifts.
